Model_OUT-7023A,B,C,D
■ INTRODUCE

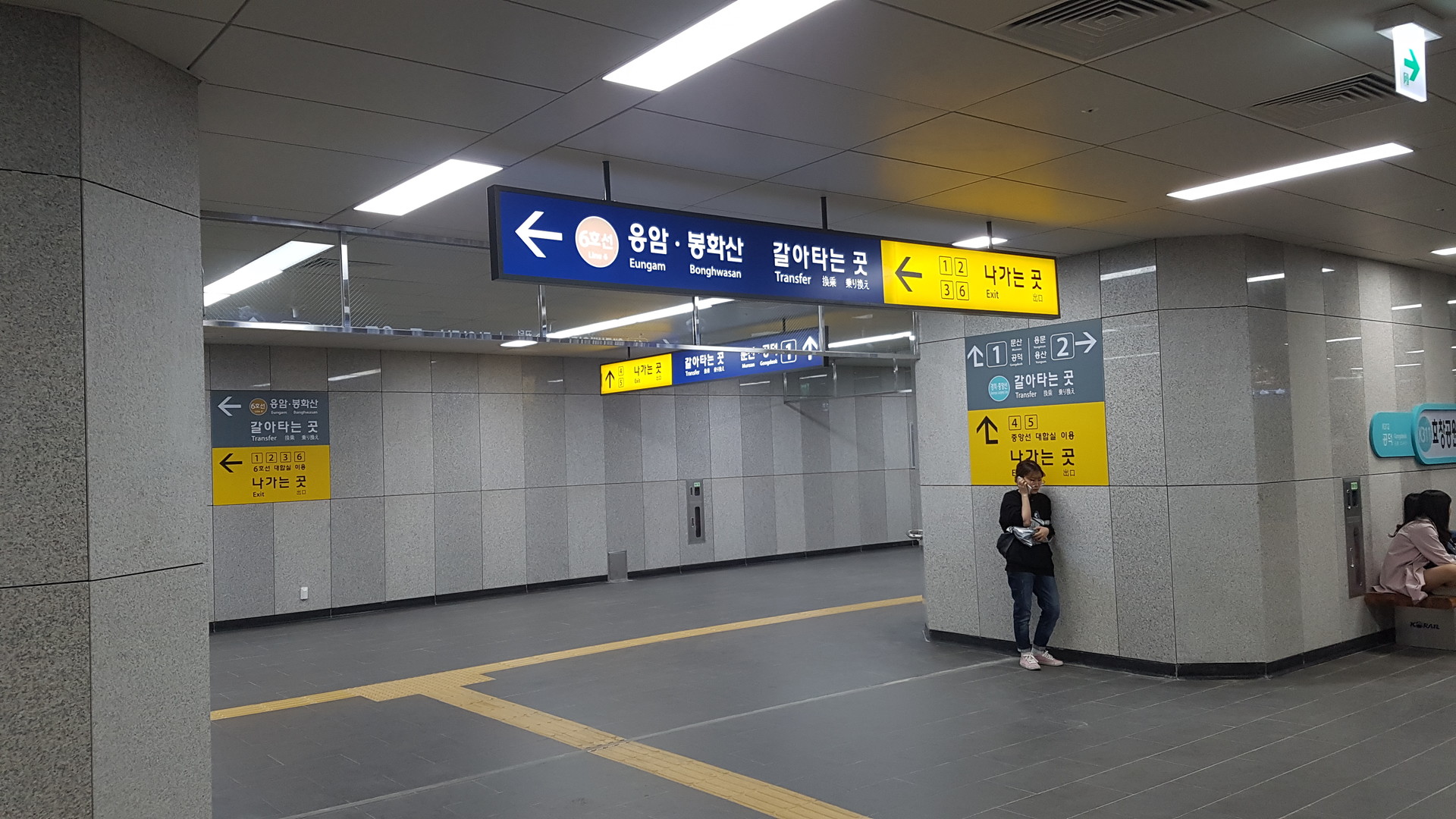

These frames for the subway direction guide sign are Hudeco's flagship products. You can find Hudeco's frames in most subway lines in Korea. Frames are available in 4 models manufactured according to the specified specifications of the stations.
The light source types and models of the frames are classified into the central LGP type, double-sided LGP type, upper and lower LED bars type, etc. depending on the black-out sheets, sheets for lighting, or specifications. The fixed hanger or hinge-type hanger is used to fix it on the ceiling. These frames are often used not only for the direction guide signs for subways but also for shopping malls, terminals, hospitals, etc.
- Section photos by model
Double-sided LGP type / Wall-mount direct downward type
7023A SectipnDouble-sided LGP type / Wall-mount direct downward type
Bars exclusively for sides(SMPS, Breaker embedded)
7023B SectionBars exclusively for sides(SMPS, Breaker embedded)
Black-out sheet / Central LGP type / Upper and lower LED bars type / Wall-mount direct downward type
7023C SectionBlack-out sheet / Central LGP type / Upper and lower LED bars type / Wall-mount direct downward type
Side lens LED type / Upper and lower LED bars type
7023D SectionSide lens LED type / Upper and lower LED bars type
- Light source type
7023c is mainly used
Central LGP type7023c is mainly used
A total of two LGPs, one on each side, are inserted(Model_7023A)
Double-side LGP typeA total of two LGPs, one on each side, are inserted(Model_7023A)
LGP x / LED bar uses (Model_7023C,D,E)
Upper and lower LED bars typeLGP x / LED bar uses (Model_7023C,D,E)
- Spec
| Frame Spec | Thickness : 70mm, Bezel width : 23mm | Color | 1-Silver, 6-Dark gray |
| LED-Type | LGP(light guide panel) type / Side lens LED type / Central LGP type / Double-side LGP type / Wall-mount direct downward type | Adapter / Apply | Adapter or SMPS can be embedded in it |
| Side-Type | Single surface or Double-sided | PC Spec | 3T ~ 6T |
| Back Board | Aluminum composite plate 2T | Construction method | When the product is used for a hanger, the hanger should be purchased separately. (Fixed-type hanger, Hinge-type hanger) |
| Warranty period | 1 years | Corner presence or absence | O |
| Waterproof | Basic type : Indoor use Daily use waterproof type : Can be made to order | Made to order | O |
| Processing of cables | The cable length and cable position can be selected when the order is placed. |
■ Frame specifications by standard size (7023A,C standard) and Specification, Drawing)
| Division | 1200x270 | 2400x270 | 3600x270 | 4800x270 | 6000x270 |
| Outside diameter (mm) | 1200x270 | 2400x270 | 3600x270 | 4800x270 | 6000x270 |
| Inner diameter (mm) | 1177x247 | 2377x247 | 3577x247 | 4777x247 | 5977x247 |
| View(mm) | 1154x224 | 2354x224 | 3554x224 | 4754x224 | 5954x224 |
| Power(w) | The voltage is different depending on the LED type. | The voltage is different depending on the LED type. | The voltage is different depending on the LED type. | The voltage is different depending on the LED type. | The voltage is different depending on the LED type. |
| Weight(kg) (excluding BLU) | 6.1kg | 11.5kg | 16.8kg | 22.2kg | 27.5kg |
■ Product part photos & construction photos
- Central LGP type (7023C)
- Double-side LGP type (7023A)
- Upper and lower LED bars type (7023C, 7023D, 7023E)
- Other material photos
